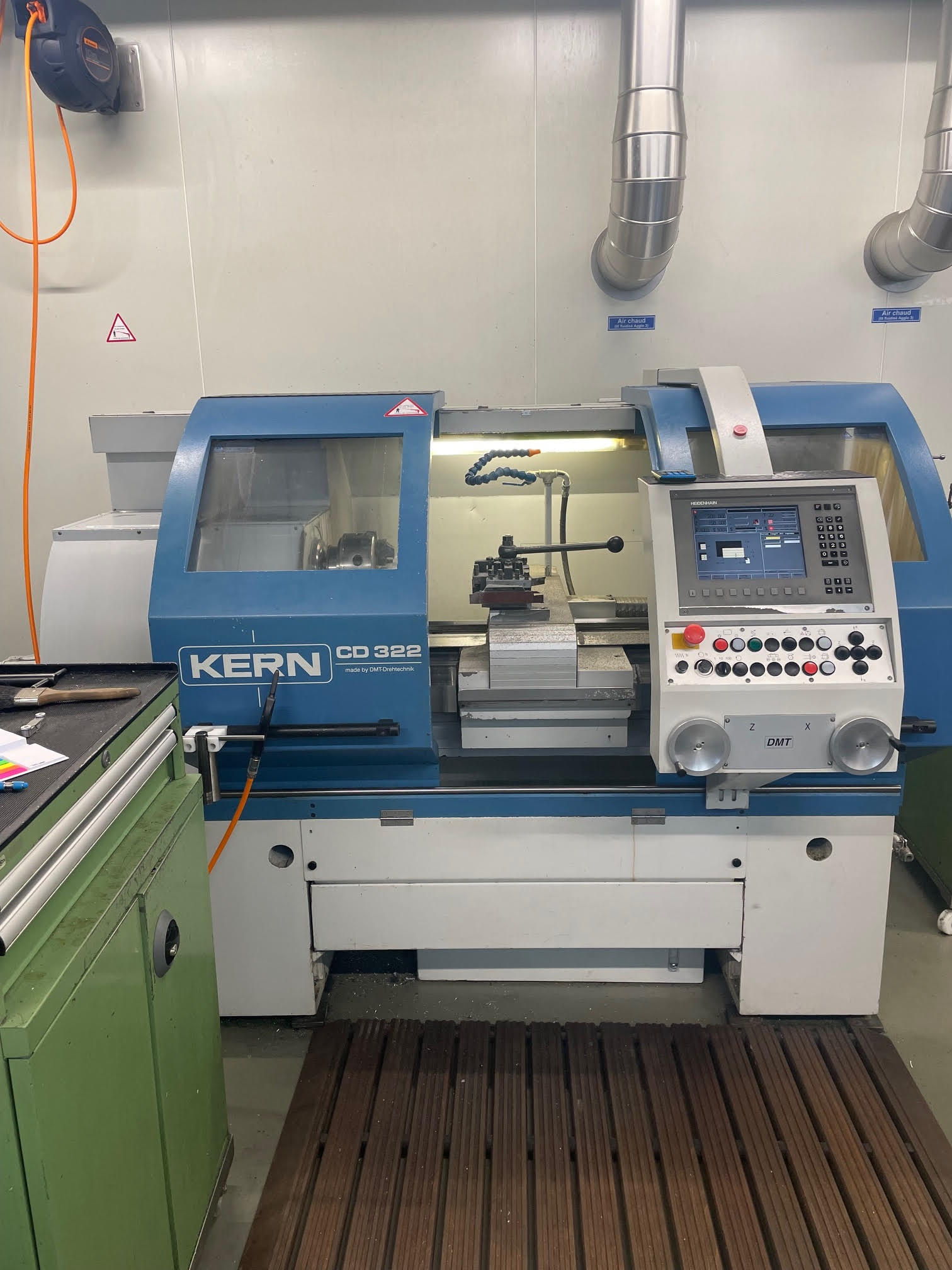

Offer Cycle Controlled Lathe Kern CD 322
Offer Cycle Controlled Lathe Kern CD 322
| Manufacturer | DMT Kern |
| Model | CD 322 |
| Condition | Machine in good condition and canbe inspected under power |
| Type of offer | Second Hand Machine |
| Year | 2005, Serial number 2405.05 |
| Location | HUngary |
Turning capacity
| Rotating diameter over saddle | 320 mm |
| Perimeter dia. above cross slide | 150 mm |
| Centre distance | 750 mm |
Main spindle
| Spindle speed | 10-4000 rpm |
| Spindle nose | DIN 55027 / Size 5 |
| Spindle bore diameter | 52 mm |

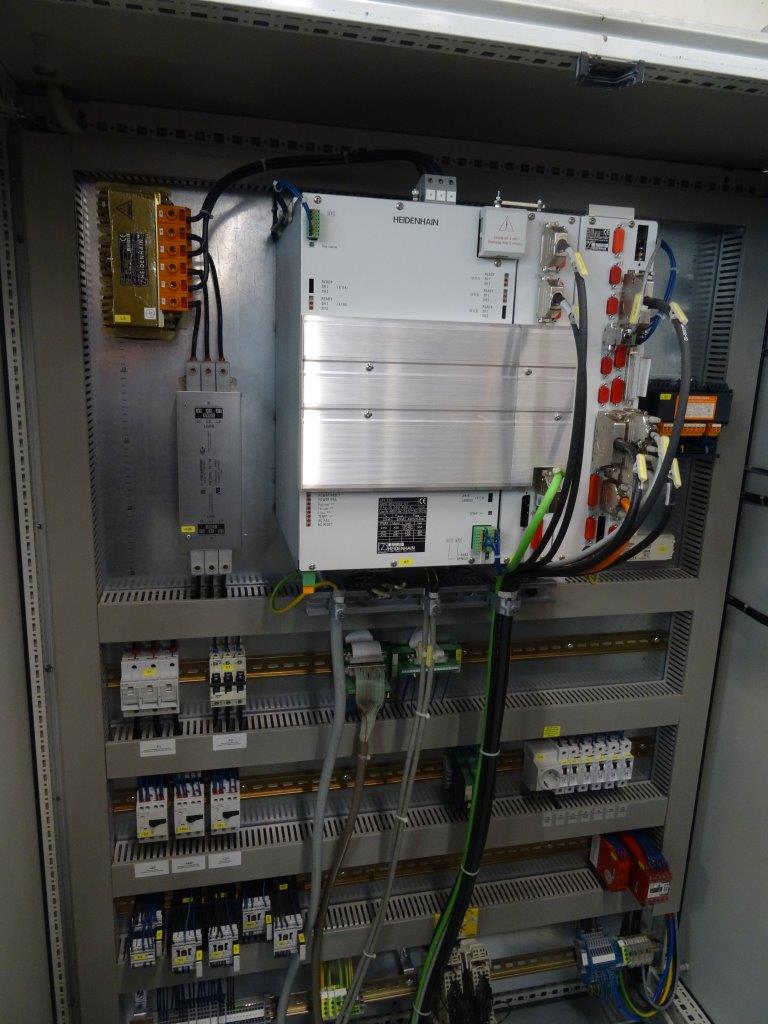

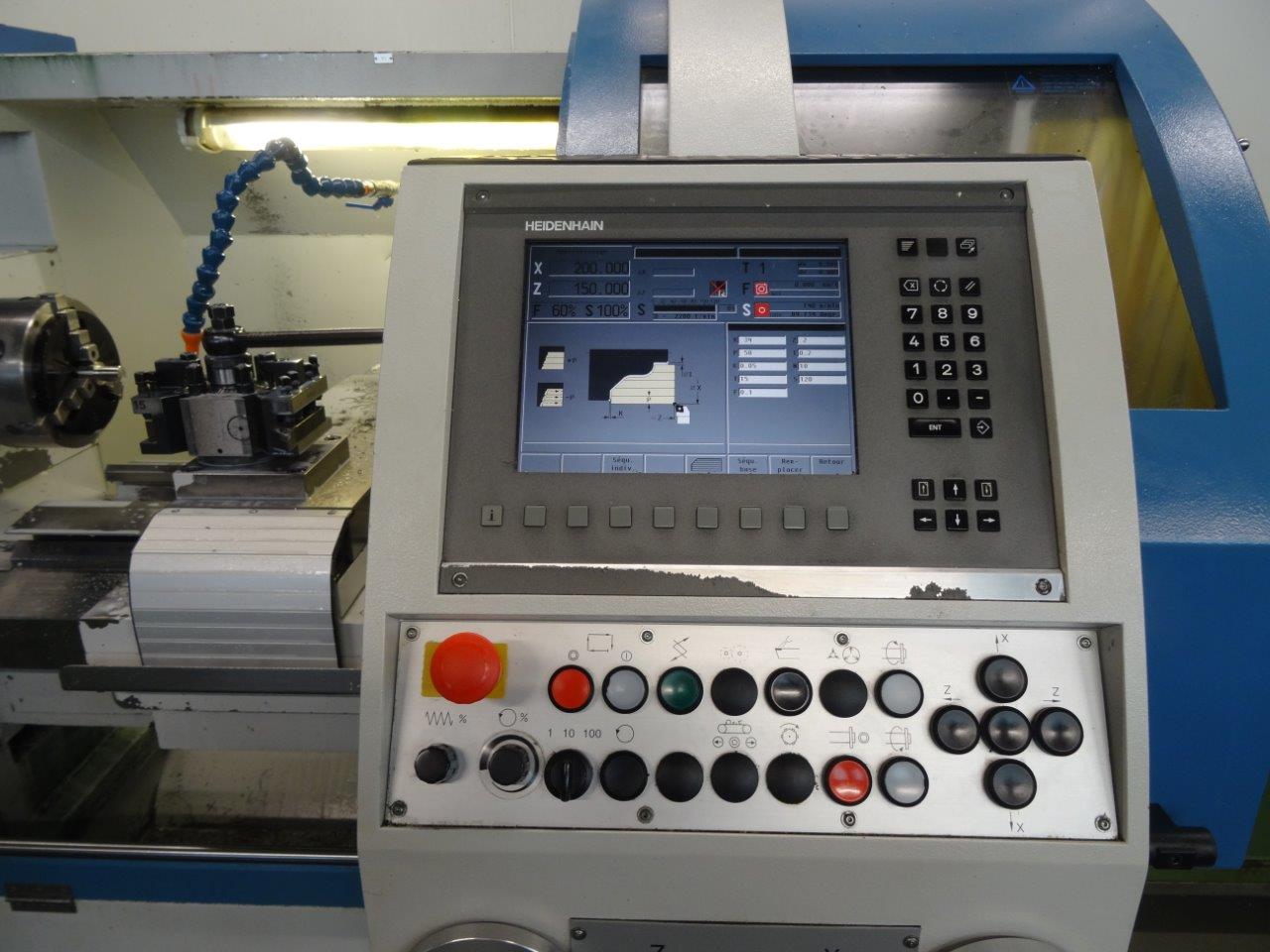

| Control | Heidenhain 4110, Manual Plus |
Feed
| Feed rate/ Rapid feedX-axis | 0.001–1000 mm/rev./ 5 m/min |
| Feed rate / Rapid feed Z-axis | 0.001 – 2000 mm/rev. / 10 m/min |
| Tool post | BrandParat, indexing 4 pos.each 90° |

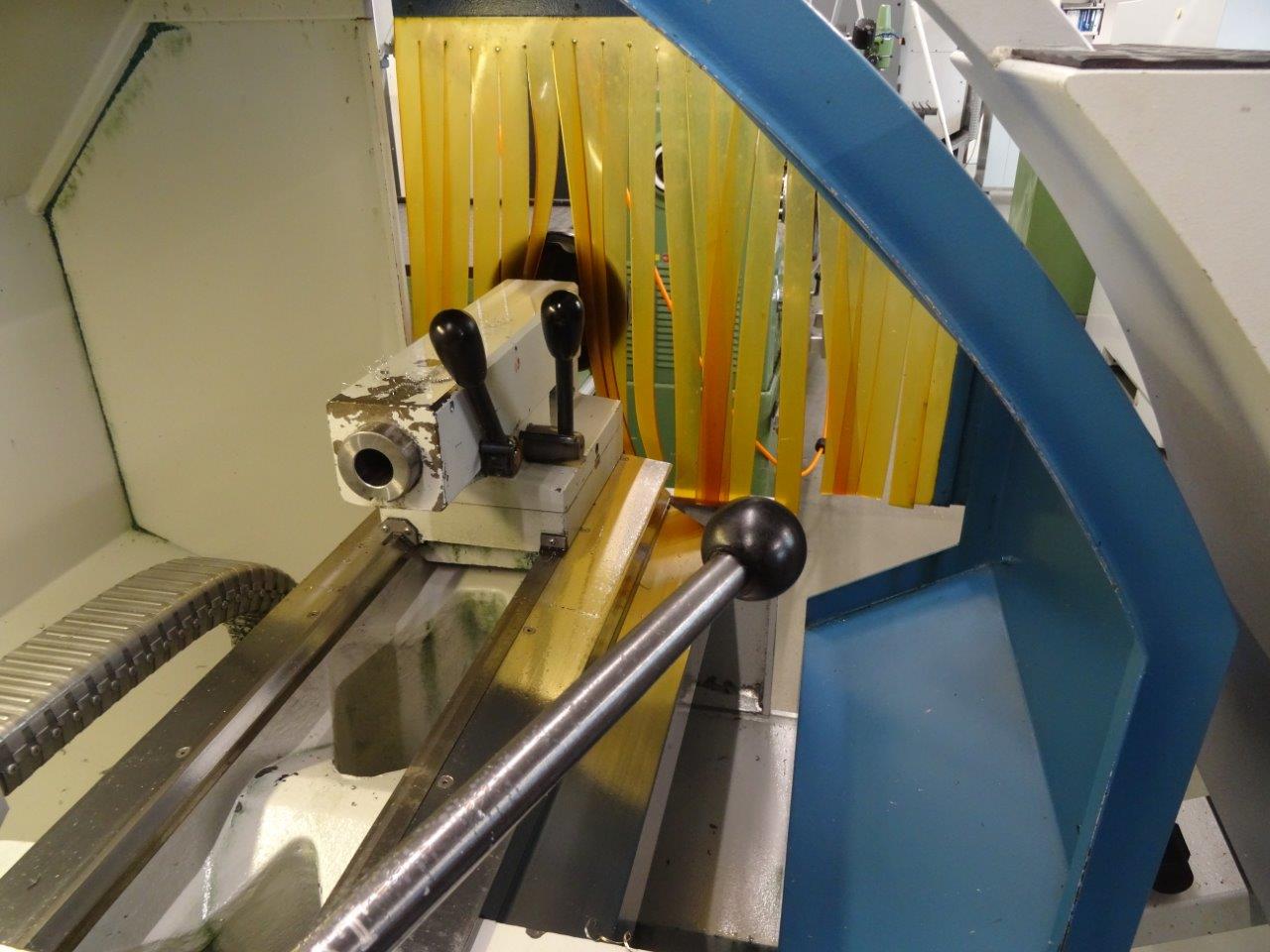

Tailstock
| Quill diameter | 60 mm |
| Quill travel | 140 mm |
| Quill morse taper | 4 |

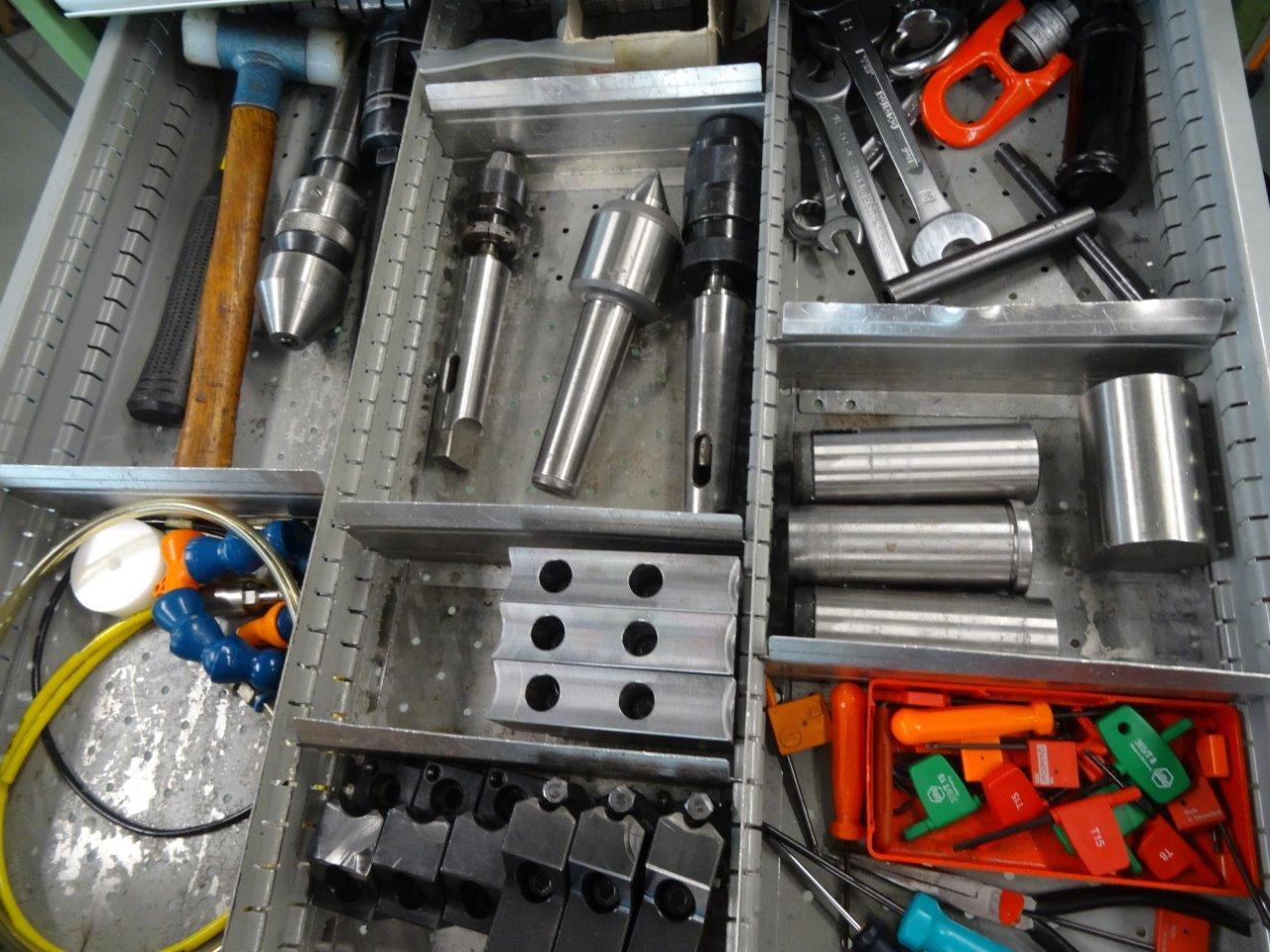

| Accessories | 3-jaw chuck |
| Fast clamping device for collets, incl. varia collets | |

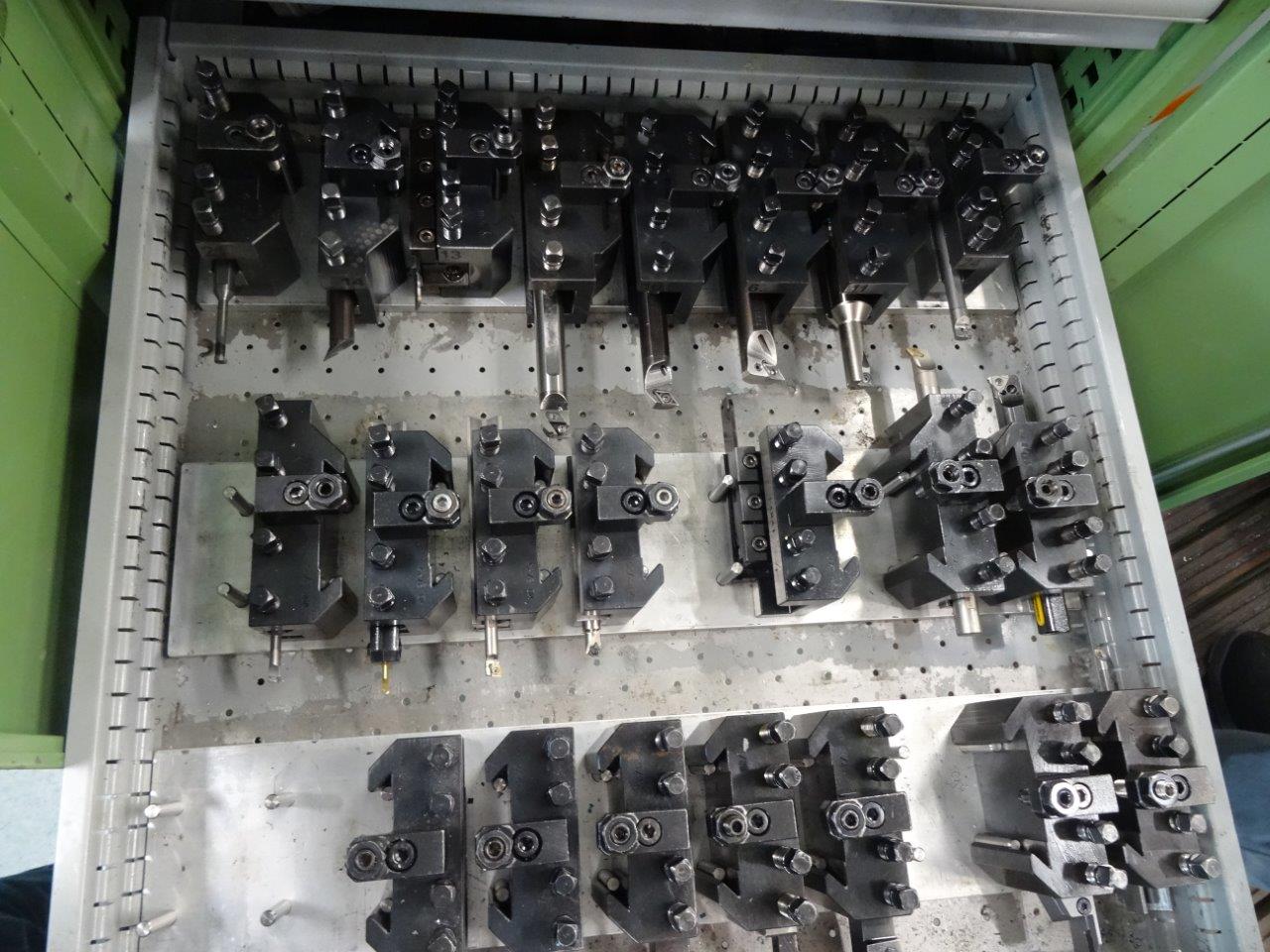

| Approx 30 pcs. Tool Holder | |
| Coolant tank | |
| Documentation of Machine |
| Weight | 2200 kg |
| Electrical supply | 400 V, 50 Cycles |
Conditions
| Delivery time | Ex. stock,Intermediate Sales reserved |
| Price | On request |
| Pricing | FCASzigetszentmiklós,Hungary |
| Payment | 100% in advance |
| Warranty | No warranty |
